VaskiBEND bending solutions flatbar busbar copper


VaskiBEND

An energy-efficient, precise, servo-electric bender designed for high production efficiency.

The VaskiBend is a versatile machine family for bending flat bars.

With a quick and accurate back gauge to ensure consistent results, the modular design supports extensive automation options to fulfill specific requirements.

Vaski DIGIBEND prodigy flatbar busbar

VaskiPunch Prodigy

A cost-effective solution with a 4-station tool magazine and wide force range. The VaskiBEND Prodigy processes flats bars up to 200 mm wide to 20 mm thick.

  • Entry level, energy-efficient hydraulic.

  • Manual 1+1 tooling.

  • Flexible multi-operation processing with manual tool change

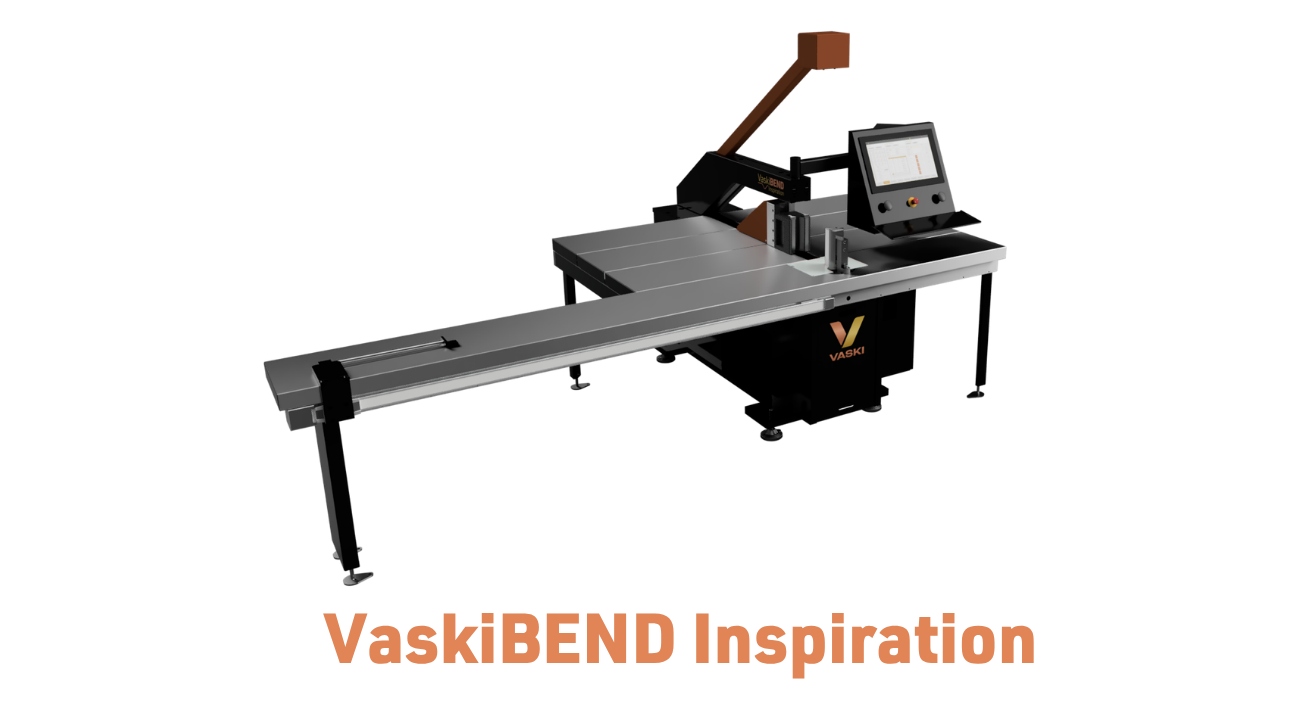

VaskiBEND Inspiration - SingleTool

VaskiBEND Inspiration - SingleTool

An all-electric flat bar bender with a ram force up to 400 kN.

  • Mid -level, servo-electric drive.

  • Bending angle verification with camera (option).

  • Low electricity consumption and low maintenance costs.





VaskiBEND inspiration bending flatbar busbar copper

VaskiBEND Inspiration -  MultiTool

This bender combines a unique automated tool change with the same powerful ram force as the single-tool machine.

  • For bending multi-shaped parts with one go.

  • Automatic tool changer (4 stations).

  • Integration is possible with VaskiROBOT and / or VaskiFLOW
    system.

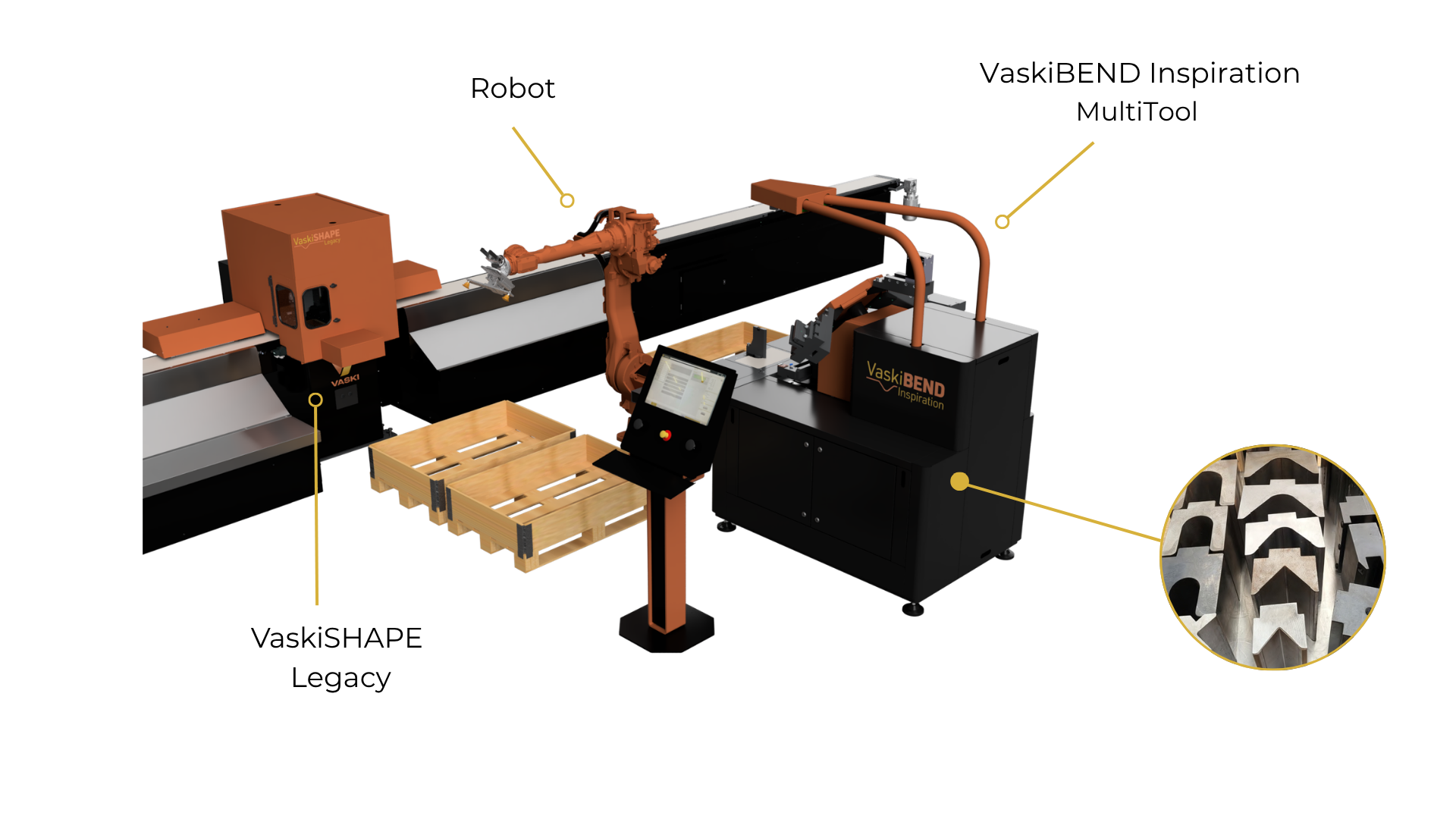

Example of Vaski-RoboBEND

VASKI-ROBOBEND
Technical Specifications VaskiBEND Prodigy BEND Inspiration Single & MultiTool
Bending force
200 kN or 400 kN
400 kN
Bending system
Hydraulic
Servo-electric
Positioning gauge
Electric
Servo-electric
Tool change system
Manual
4-tool automatic tool change (MT4)
Tooling height
-
200 mm
Max. stroke (mm)
245
400 mm
Max. working speed (mm/sec)
9.6
-
Return speed (mm/sec)
62
-
High bending (mm)
H=200
-
Extra high bending (mm)
H=350
-
Electrical requirements
-
400VAC 50/60Hz, 32A
Transformer available for other voltages.
Air requirements
-
6 bar, 300 l / min
 Flat bar dimensions - Edgewise
Bar width
Up to 100 mm
Up to 100 mm
Bar thickness
Up to 10 mm
Up to 10 mm
