VaskiSHAPE Series

FINISHING MADE EASY

Small footprint iccon

Small footprint

Easy to use icon

Easy to use

Safe to operate icon

Safe to operate

Consistent quality icon

Consistent quality

PRODUCTIVITY FEATURES

  • Very simple to operate.
  • Automation option.
  • Consistent part quality.
  • Fast cycle time.
  • Small footprint.
  • Easy to replace tool.
  • Easy access to the machine.
  • Safe to use, eliminating
grinding belts and other
 deburring solution.
  • Dust extraction option.
  • Fume-extraction ready.

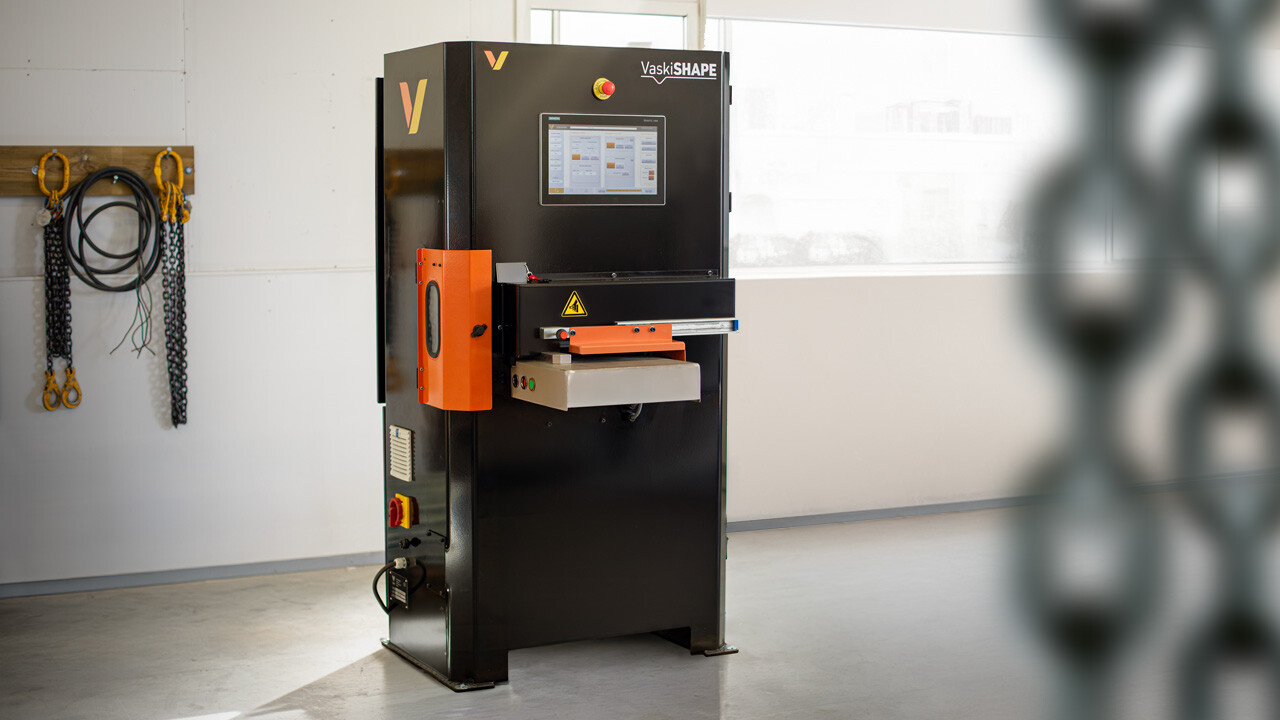

VASKISHAPE SERIES

The VaskiSHAPE finishing family is an energy efficient, high accuracy flat and round bar end finishing solution, that will increase your bar part quality. The machine combines high production rates with consistent quality. The VaskiSHAPE is the first solution to eliminate the safety issues caused by sanding belts and other deburring solutions. VaskiSHAPE is exceptionally simple to operate.



The small footprint saves space and enables convenient placing next to the punching machine. Greater automation is always possible through connection to the punch. When operating a VaskiSHAPE, operators only need to provide bar dimensions on the touchscreen panel and the machine takes care of the rest.



There is a measuring unit option to automatically detect bar dimensions and generate exact toolpaths, eliminating the potential of coding errors. Each machine of the VaskiSHAPE family features automatic part clamping, saving operator time that can be used to prepare the next part to be processed.

  • PRODIGY

    Grow with the Prodigy, a good quality entry level machine

  • INSPIRATION

    Be inspired by the production work horse, mid-level machine

  • LEGACY

    Leave a Legacy with a flexible and exceptionally productive machine

<- SWIPE ->

?

Grow with the Prodigy, a good quality entry level machine

?

Be inspired by the production work horse, mid-level machine

?

Leave a Legacy with a flexible and exceptionally productive machine

TypePRODIGYINSPIRATIONLEGACY
Milling motor power4,5 kW4,5 kW4,5 kW
CNC controlled servo axes233
Loading/unloadingManualManualFully automatic
Work cycleAutomaticAutomaticAutomatic
Automatic bar dimension detectionOptionalOptionalOptional
Bar dimensions
Width15-260 mm15-260 mm15-260 mm
Thickness/diameter3-20 mm3-20 mm3-20 mm
Performance
Machining max speed67 mm/s67 mm/s67 mm/s
Spindle speed0-18 000 rpm0-18 000 rpm0-18 000 rpm
All technical information included in this documentation is indicative only and technical data of any Rodstein supplied equipment is as supplied with the offer documentation and signed contract
