VaskiSHAPE

Finishing made easy

Contact us

VaskiSHAPE end finishing busbar copper


VaskiSHAPE

An efficient and user-friendly machine for deburring and chamfering.

The VaskiSHAPE is a high-accuracy finishing machine, designed to integrate directly with VaskiPUNCH lines

This energy-efficient solution ensures consistent quality and fast machining by automatically measuring bar width and thickness.

VaskiSHAPE prodigy busbar flatbar finishing machine

VaskiSHAPE Prodigy

Consistent edge quality for straight-cut deburring, using automatic width and thickness measurements.

  • Designed for deburring the ends. Straight cut.

  • Ideal entry-level solution for basic finishing needs.

  • Uses cost-effective, globally available milling tools.

VaskiSHAPE inspiration busbar flatbar finishin machine-2

VaskiSHAPE Inspiration

This machine enables full bar end milling and rounded corners with the same automated measurement technology as the VaskiSHAPE Prodigy.

  • Capable for deburring & full bar end milling. Also for rounded corners.

  • Built for higher performance and demanding use.

  • Specialised tooling enables advanced machining depth.

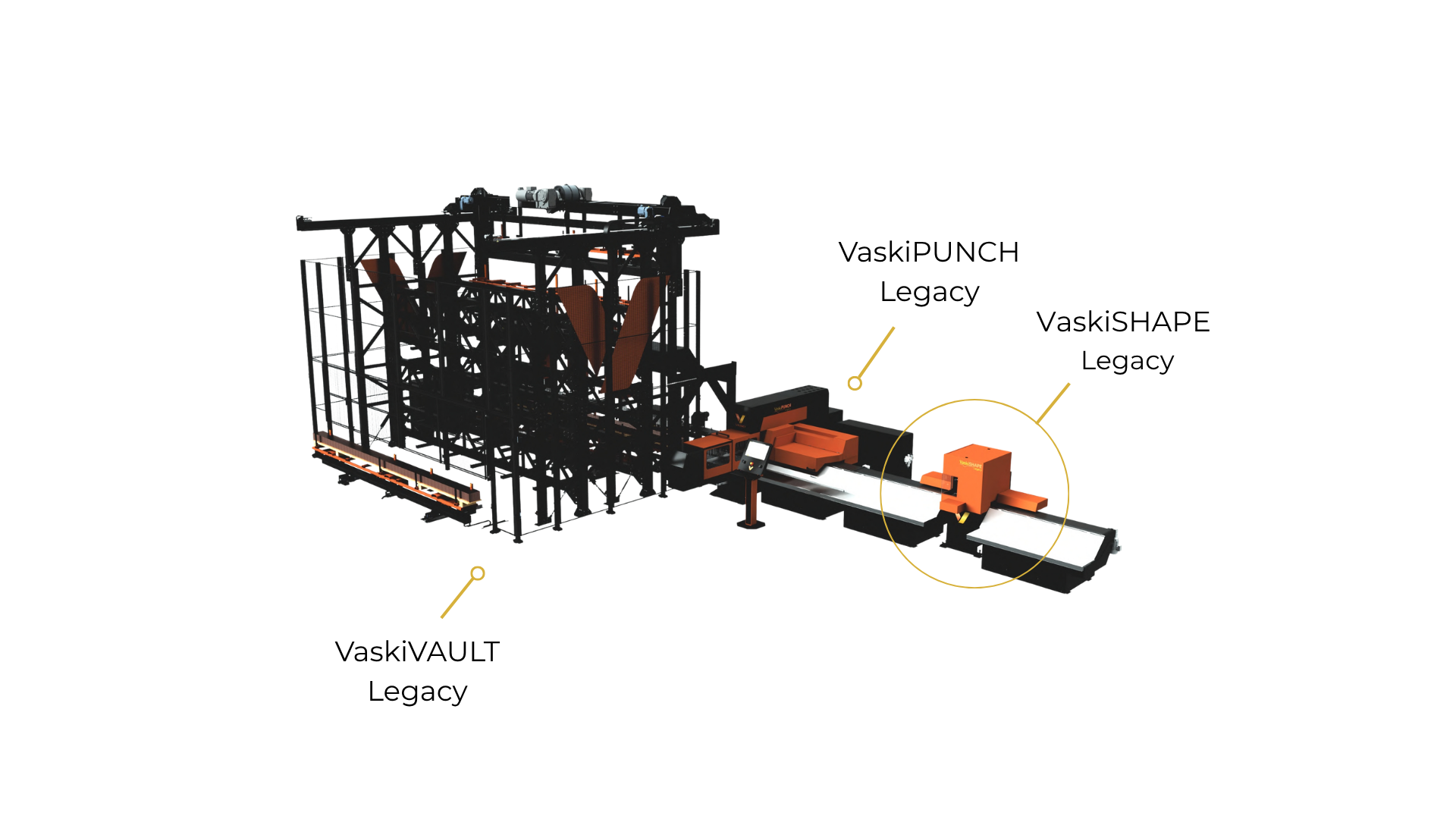

VaskiSHAPE Legacy

Direct integration with VaskiPUNCH  enables fully automated operation, supporting deep chamfering and complex toolpaths.

VaskiSHAPE Legacy
Technical Specifications SHAPE Prodigy SHAPE Inspiration SHAPE Legacy
Milling motor power
3.5 W
3.5 W
 3.5 kW
CNC-controlled axes 2
2
2 or 3
3

Flat bar dimensions

- Width
- Thickness



15-260 mm
3-20 mm


15-260mm
3-20mm


15-260 mm
3-20 mm

Tooling

- Standard


Copper and aluminium R5

Copper and aluminium R5

Copper and aluminium R5
Minimum part length
~100 mm
~150 mm
~70 mm


Download the Vaski Product Catalogue


Discover Vaski technologies for efficient flat bar and busbar manufacturing. The catalogue presents punching, bending and shaping solutions designed to improve productivity and streamline modern metal production, with a complete overview of machine capabilities and technical specifications. It brings together the most relevant product information in one place to support evaluation and selection of the right solution for your production needs.
