VaskiPUNCH Series

VERSATILE SERVO-ELECTRIC FLAT BAR PUNCHING CAPACITY

Energy efficiency icon

Energy efficient

Fast setup icon

Fast setup

Versatile capacity icon

Versatile capacity

Low maintenance icon

Low maintenance

PRODUCTIVITY FEATURES

  • State of the art, easy to use touchscreen operator interface.
  • Servo-motors easily punch 20 mm material (Cu, Al).
  • Up to 90% lower energy consumption vs comparable hydraulic machines.
  • Servos reduce downtime and maintenance by circa 50% vs competing technology.

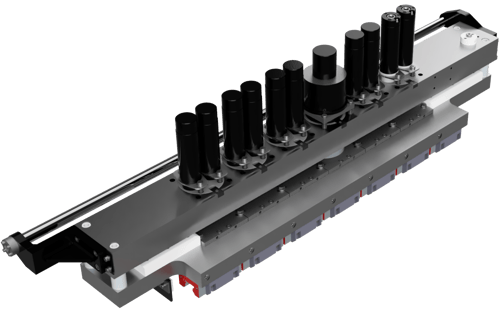

  • Customisable tool magazine, up to 27 tools with Multi Tool technology.
  • Thick Turret and Extended Thick Turret tools can be included in single magazine set-up.
  • VaskiFEED loading device for automation.
  • Unlimited component length with fast repositioning.

VASKIPUNCH SERIES

The VaskiPUNCH machine family is the world’s only all electric, high speed machine with exceptional energy consumption and reliability. Complemented by the most versatile flexible tooling system on the market, it achieves maximum cost efficiency that is a necessity with the ever changing demands of today’s market. The machines accommodate Thick Turret, extended Thick Turret and multiple styles in the magazine at the same time.



With several options for automated storage and loading solutions ensures customers can optimise their production even with frequently changing product specifications. Flexibility of interchangeable tooling magazines maximises uptime by allowing out of machine tool changeover.



Large, versatile tooling capacity and easy and fast setups combined with a range of flexible automation options are further factors in making the VaskiPUNCH family the most competitive LEAN manufacturing solution for flat bar processing.

  • PRODIGY

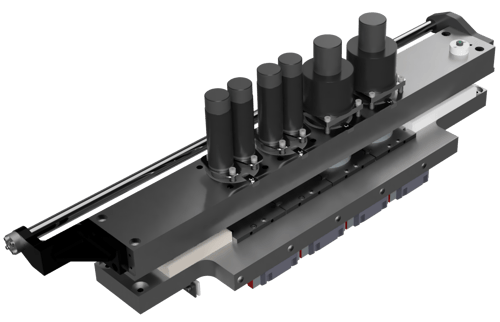

    Grow with the Prodigy, a good quality entry level machine

  • INSPIRATION

    Be inspired by the production work horse, mid-level machine

  • LEGACY

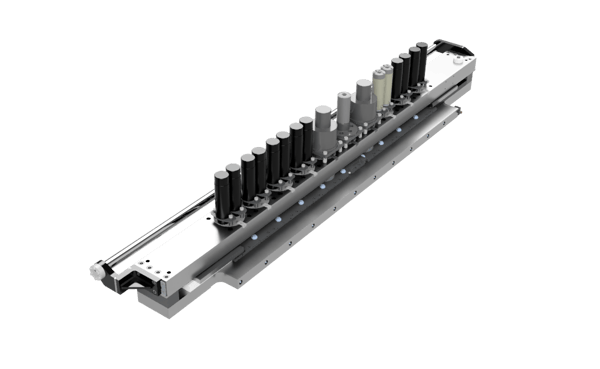

    Leave a Legacy with a flexible and exceptionally productive machine

Technical specifications

?

Grow with the Prodigy, a good quality entry level machine

?

Be inspired by the production work horse, mid-level machine

?

Leave a Legacy with a flexible and exceptionally productive machine

TypePRODIGYINSPIRATIONLEGACY
Punching force300 kN300 or 400 kN550 kN
Punching systemElectricServo-electricServo-electric
Punching strokeUp to 100 hit / minUp to 250 hit / minUp to 285 hit / min
Feeding speedN/A - Manual feedingUp to 1,7 m/sUp to 2,2 m/s
Feeding accelerationN/A - Manual feedingUp to 6 m/s² Up to 8 m/s²
Feeding length
Without repositioning2 175 mm1 250 mm1 250 mm
With repositioningN/A Unlimited Unlimited
Accuracy0,1mm / 1,000mm0,1 mm / 1,000 mm0,1 mm / 1,000 mm
Tooling capacity5 C – size Thick Turret21 B-size Thick Turret27 B-size Thick Turret *
Tool change mechanismManualAutomaticAutomatic
Flat bar dimensions
Width15 — 200 mm15 — 200 mm15 — 260 mm
Thickness3 — 12,5 mm3 — 12,5 mm3 — 20 mm
Length (standard)50 — 4 000 mm (increased length available as an option)50 — 4 000 mm (increased length available as an option)50 — 4 000 mm (increased length available as an option)
* ) As an option, tooling can include Extended Thick Turret and other tooling/holder systems. Please, do not hesitate to request your preferred tooling requirements.
All technical information included in this documentation is indicative only and technical data of any Rodstein supplied equipment is as supplied with the offer documentation and signed contract
